• 3.21 Axle Ratio
• ABS brakes
• Driver door bin
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• HD Vinyl Solid Back Bench Seat
• Passenger cancellable airbag
• Passenger door bin
• Power steering
• Speed-sensing steering
• Variably intermittent wipers
• Voltmeter

• 2-spoke steering wheel
• Black vinyl floor covering
• Cigar lighter/pwr outlet
• Dash insulation liner
• Day/night rearview mirror
• Dual-opening retractable cupholder
• HD vinyl solid back bench seat
• Hood release in cab
• Instrument cluster-inc: 120 MPH primary speedometer
• Passenger assist handle

• (4) black hub caps
• (5) 16" x 7" steel wheels
• 117-amp alternator
• 26 gallon fuel tank
• 3.21 axle ratio
• 6.5' pickup box-inc: dual wall construction, one-piece high strength steel floor, 2-tier loading capability, bulkhead dividing provision, tie down loops
• 600-amp maintenance-free battery
• 6400# GVWR (3650 front/3900 rear), springs (3650 front/3900 rear), axles (3650 front/3900 rear)
• Conventional spare tire w/winch-type carrier
• Front stabilizer bar
• HD front/rear shock absorbers
• Independent front suspension w/coil springs
• P225/75R16 all-season BSW SBR tires
• Pwr front disc/rear drum brakes
• Rear wheel drive
• Rear-wheel anti-lock brakes
• Solid rear axle w/longitudinal leaf springs
• Variable assist pwr steering

• Driver/passenger "Next Generation" airbags w/passenger on/off switch
• Dual note electric horn
• Rear-wheel anti-lock brakes
• Shoulder belt height adjusters
• Side-guard door beams

3.9L (239) SMPI V6 "MAGNUM" ENGINE ($0)

• (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 117
• Maximum Alternator Watts: 1404
• Cooling System
• Total Cooling System Capacity (qts): 20.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3650
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): 2350
• Curb Weight - Rear (lbs): 1690
• Gross Vehicle Weight Rating Cap (lbs): 6400
• Gross Combined Wt Rating (lbs): 7800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 10,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 700
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3650
• Spring Capacity - Rear (lbs): 3800
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3650
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Rear: 3.21
• Shock Absorber Diameter - Front (mm): 31.8
• Shock Absorber Diameter - Rear (mm): 31.8
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: Rear Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.6 x 1.26
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.0 x 2.0
• Tires
• Front Tire Order Code: TR8
• Rear Tire Order Code: TR8
• Spare Tire Order Code: TR8
• Front Tire Size: P225/75R16XL
• Rear Tire Size: P225/75R16XL
• Spare Tire Size: P225/75R16XL
• Front Tire Capacity (lbs): 1903
• Rear Tire Capacity (lbs): 1903
• Spare Tire Capacity (lbs): 1903
• Revolutions/Mile @ 45 mph - Front: 713
• Revolutions/Mile @ 45 mph - Rear: 713
• Revolutions/Mile @ 45 mph - Spare: 713
• Wheels
• Front Wheel Size (in): 16 x 7.0
• Rear Wheel Size (in): 16 x 7.0
• Spare Wheel Size (in): 16 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Variable Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 41.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26.0
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 118.7
• Length, Overall w/o rear bumper (in): 199.9
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 72.2
• Overhang, Front (in): 37.8
• Overhang, Rear w/o bumper (in): 49.1
• Front Bumper to Back of Cab (in): 116.9
• Cab to Axle (in): 39.5
• Cab to End of Frame (in): 79.7
• Ground to Top of Load Floor (in): 31.0
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 7.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 77.9
• Cargo Box Width @ Top, Rear (in): 63.2
• Cargo Box Width @ Floor (in): 64.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.4
• Tailgate Width (in): 63.2
• Cargo Volume (ft³): 55.5
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.5
• Front Hip Room (in): 63.6
• Summary

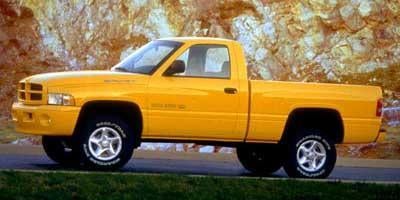

• Vehicle Name: Dodge Ram 1500
• Body Style: Reg Cab 6.5'
• Body Code: 119" WB
